Machinable Al2 O3 Oxide Alumina Based Ceramics Bushing Material Heat Resistance

Brand Name : HENGYUAN

Model Number : 99% Alumina Ceramics

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : $1-$20

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : 99% Alumina Ceramics

Density : 3.85g/cm³

Impact Resistance : 5 MPam1/2

color : White or yellow

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

1650℃ High Temperatures Purity 99% Alumina Ceramics For Insulation High Heat Resistance

Product Attributes

Attribute	Value
Material	99% Alumina Ceramics
Density	3.85g/cm³
Impact Resistance	5 MPam1/2
Color	White or yellow
OEM, ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramic is an industrial ceramic material with exceptional hardness, strength, and high temperature resistance, suitable for various demanding applications.

Our Services

Multiple specifications available for customization

Custom color options to meet specific requirements

Accommodation of custom drawings and designs

Competitive pricing with excellent cost-performance ratio

Technical Specifications

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

Product Images

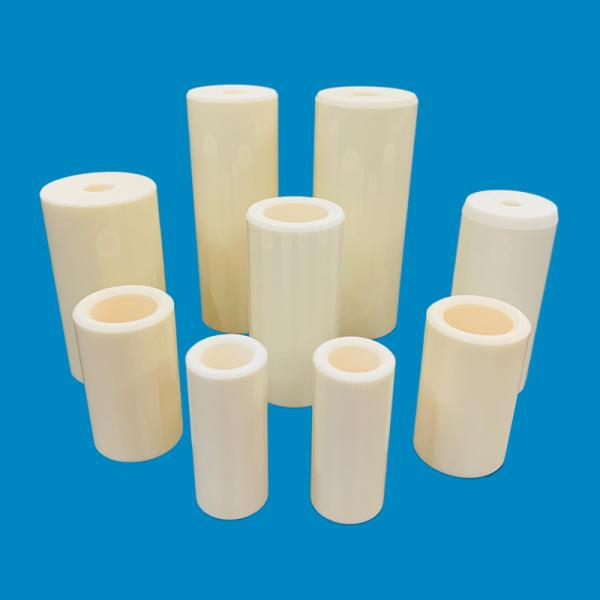

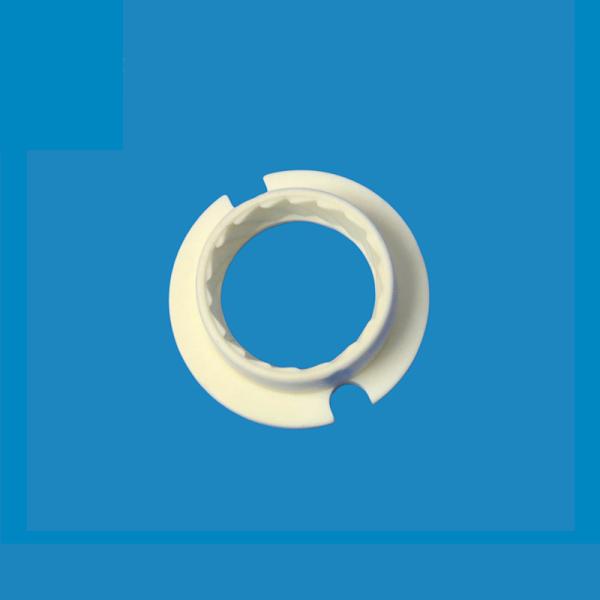

Machinable Al2 O3 Oxide Alumina Based Ceramics Bushing Material Heat Resistance
